Brand Austrian letter type AXL use welding

Current exchange action object metal action principle pulse

2mm () laser welding depth of the focal spot diameter 0.1~3 (mm) of the product alias stainless steel laser welding machine

Laser stroke can be customized combo when laser welding frequency 0~100HZ laser power 600W

Maximum average power 200~600w

Undefined

Undefined

Brand Austrian letter type AXL use welding

Current exchange action object metal action principle pulse

2mm () laser welding depth of the focal spot diameter 0.1~3 (mm) of the product alias stainless steel laser welding machine

Laser stroke can be customized combo when laser welding frequency 0~100HZ laser power 600W

Undefined

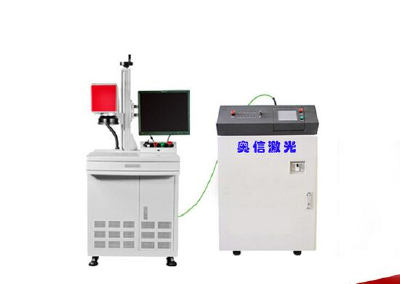

Product introduction:

OSSIM laser welding machine and high output power, energy stability, characteristics of beam mode. At the same time, to further improve the overall performance of the equipment, enhance the ductility of equipment operation, wide application range, convenient operation. Integration, the whole atmosphere is beautiful, the structure is compact and reasonable. The use of German advanced combination of gold plating reflective laser cavity technology, while using the unique beam selection and shaping technology, to ensure the high output power and excellent beam mode. Double pulse xenon lamp excitation, constant current pulse laser power, programmable and intelligent management system, and has the wrong operation and over temperature automatic protection under water. (two or three axis table system) and a light focusing system by industrial PC or C N C control, can achieve three or four axis linkage welding. Semiconductor red light indication and location. Can be matching closed or air tight, manual work table lifting mechanism, automatic rotating mechanism and coaxial monitoring system and other institutions.

Equipment characteristics:

The working principle of the laser welding machine is to add an energy detecting device at the output end of the laser, which is used to detect the laser energy.

Small, and the signal real-time feedback to the control side, and the theory of the set of energy to compare, to form a closed-loop control system, to achieve accurate control

Laser energy output. Energy negative feedback technology can make the laser output energy has a good repeatability, simple, that is, can be

In order to ensure that the output of the laser energy stability, which can effectively reduce the adverse rate of products.

The output waveform can be arbitrarily set according to the welding material, shape, etc.

In the welding process of specific workpiece, according to the work of the shape and material, change the output waveform of the laser energy, can greatly improve the quality of welding,

Some traditional laser welding problems can be solved by changing the laser output waveform.

The welding repeatability is good: the output power of the laser is stable, the operation process of the equipment is stable and reliable, and the processing consistency is high with the bending edge forming equipment.

In the production line, the whole rolling steel plate is automatically welded into a steel pipe with high welding quality, small deformation, no pollution and no pores,

Appearance is smooth and beautiful, no need or simply after order processing (polishing can), save labor cost and later a lot of labor cost.
